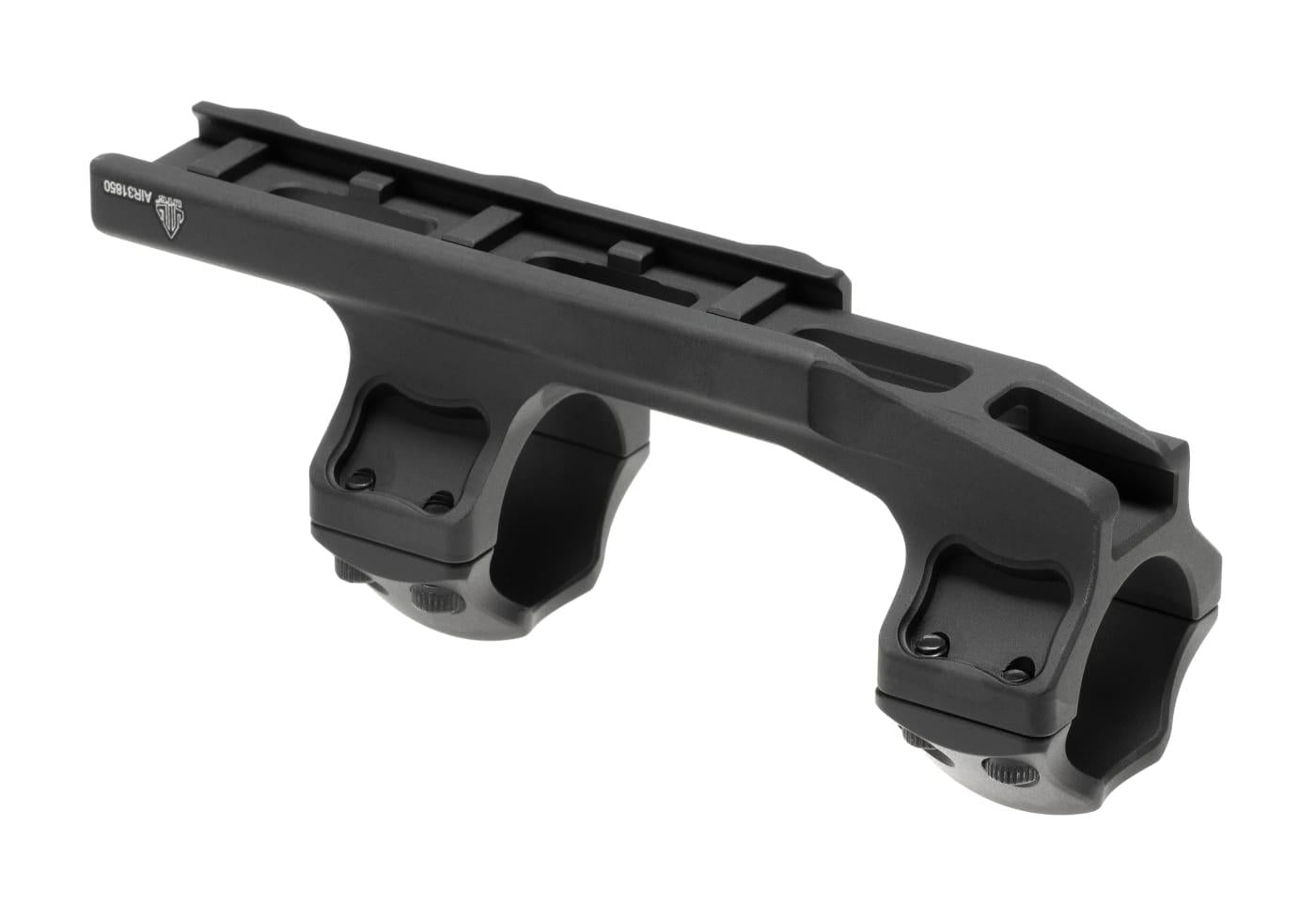

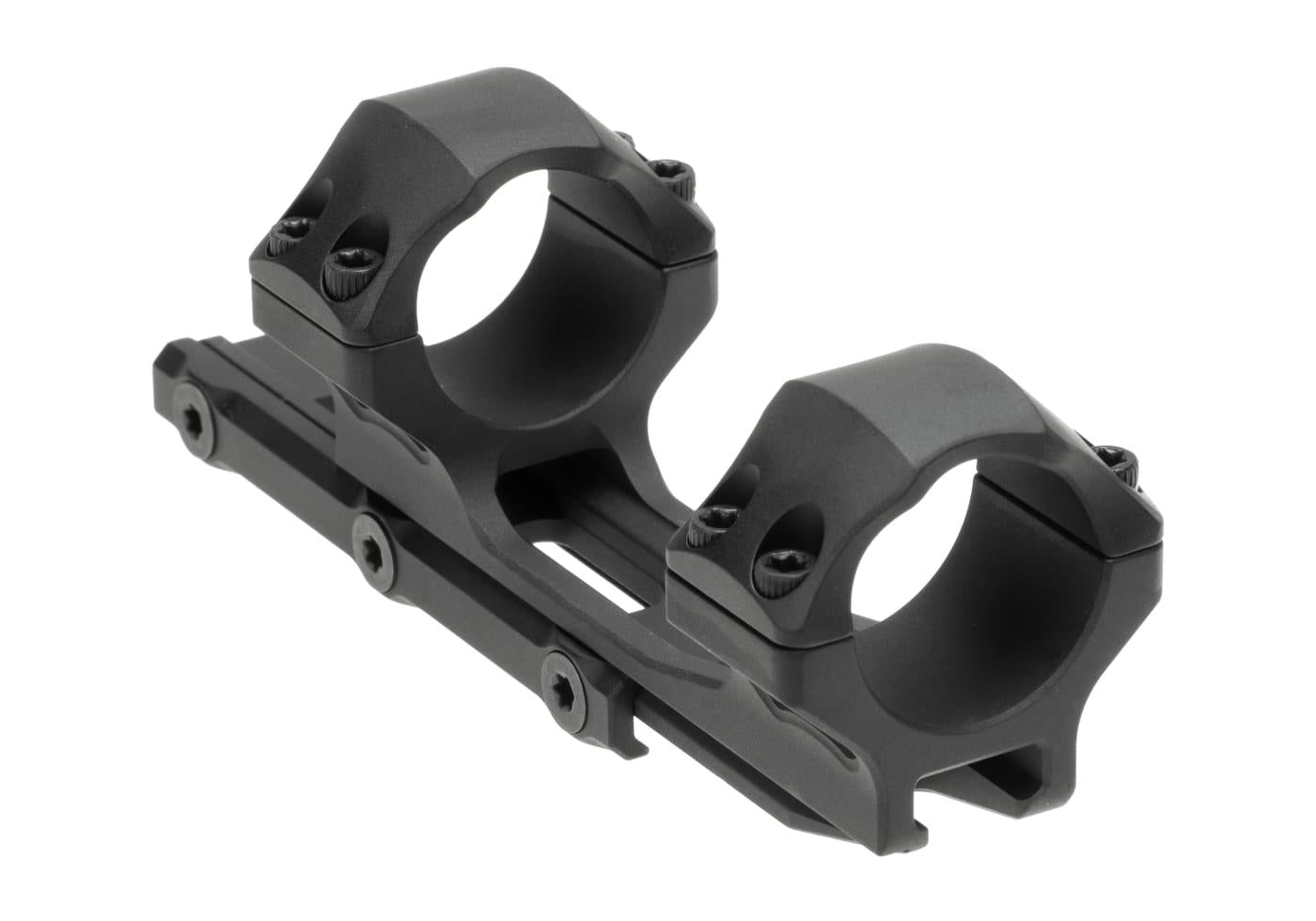

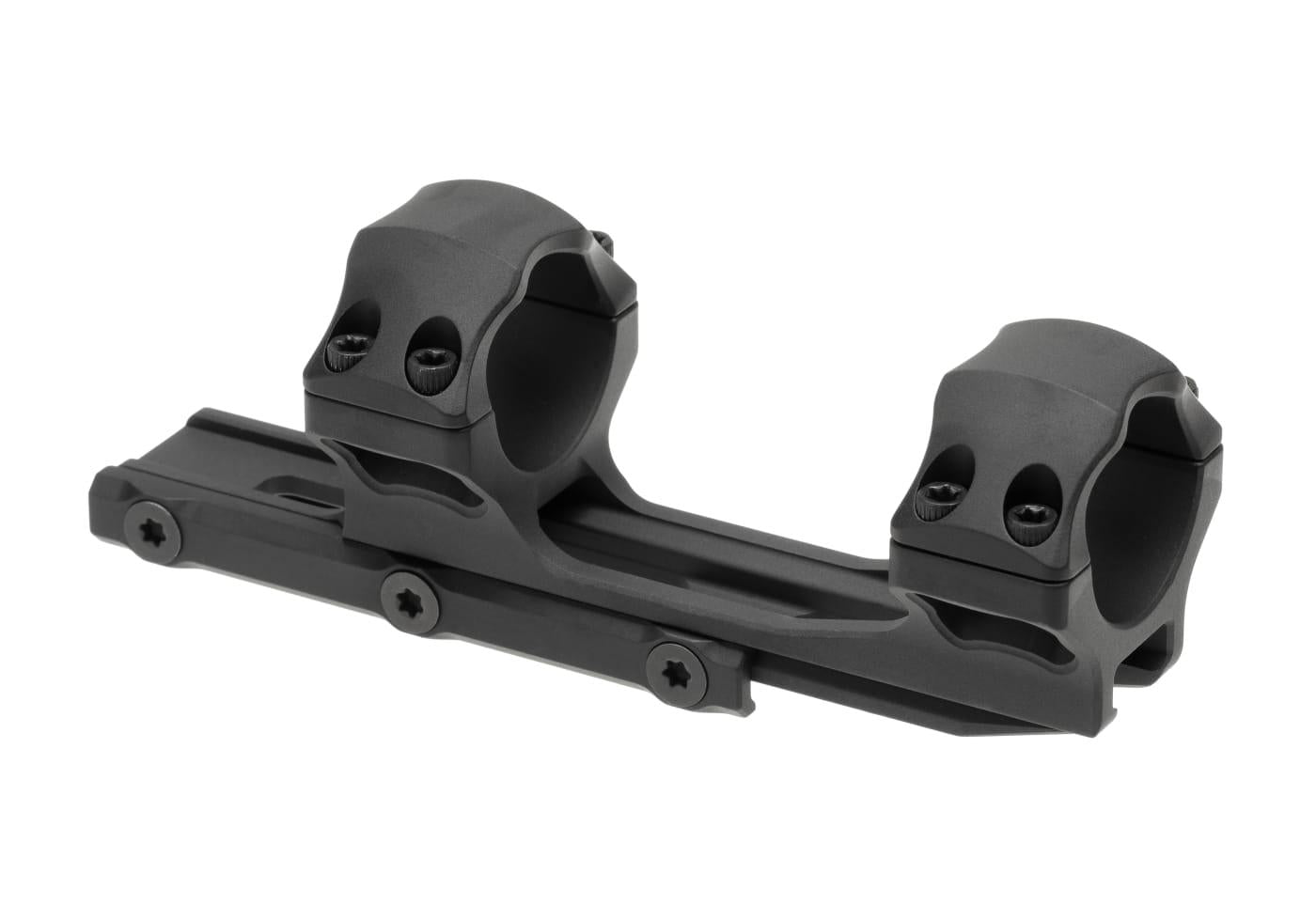

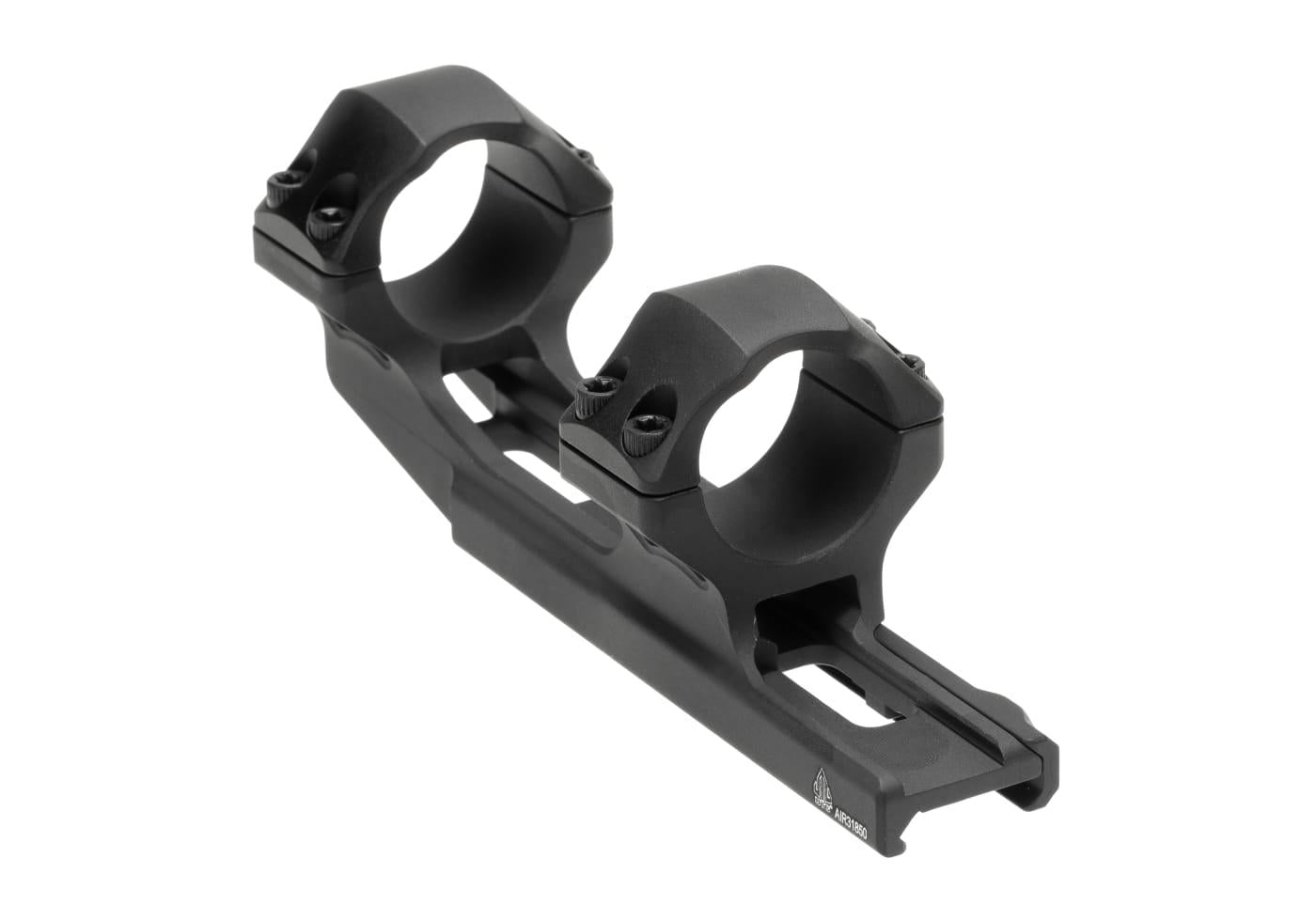

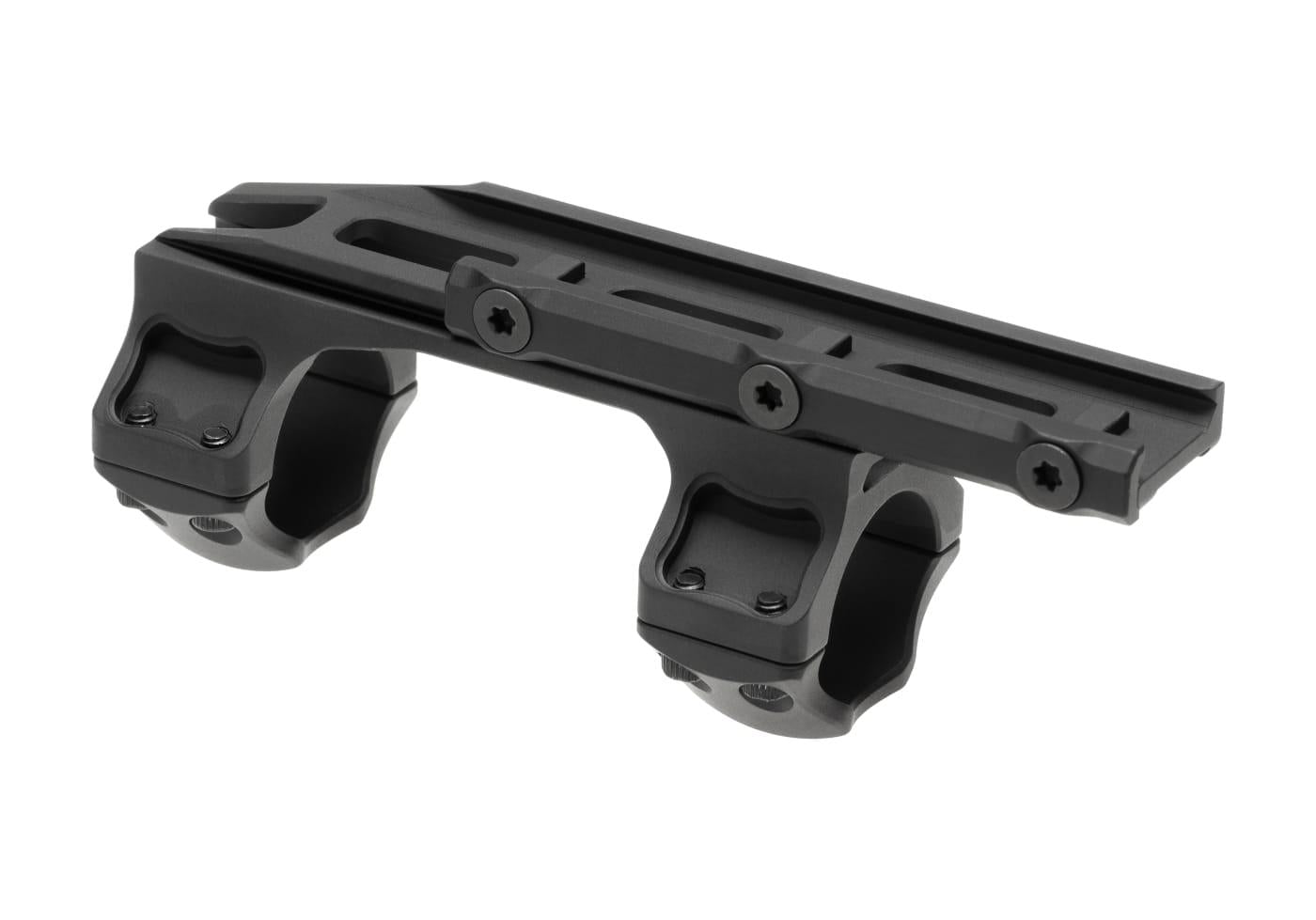

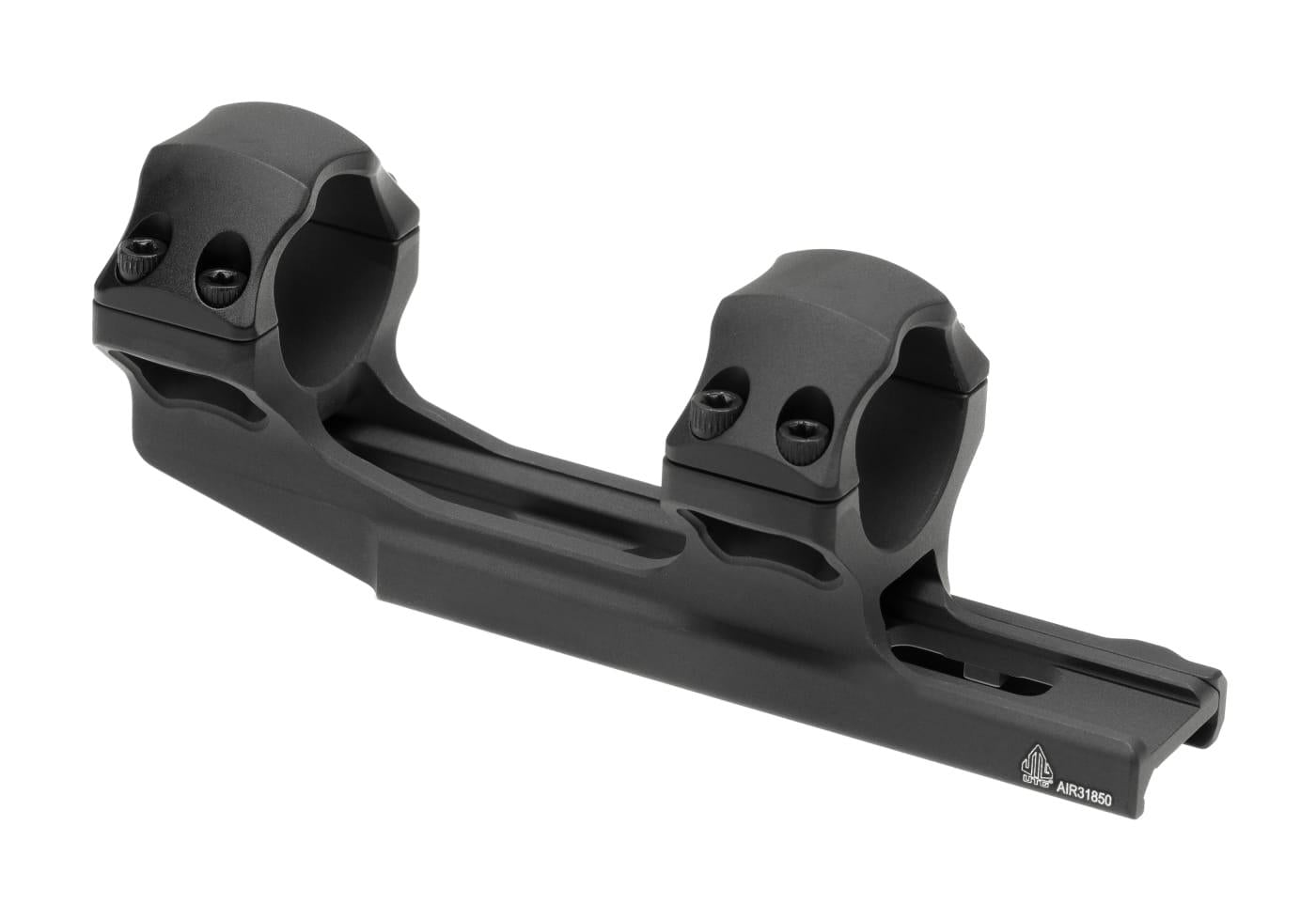

Precisely CNC machined 6061-T6 aluminum medium mount designed to fit standard Picatinny rails. The product consists of three sections - the 100mm long rail locking base, 50mm offset medium profile riser, and two 30mm scope rings. The solid locking part is fitted with a clamp for reliable and easy attachment via Torx screws with 35 inch-lb/4nm per screw. This solution ensures stable zero holding and stress resistance. A lightweight 18mm high saddle section is moved ahead 50mm of the mounting base and accepts optics with up to 65mm outer objective diameter optics. The actual optic mount is made of two slim 30mm scope rings and should be screwed in with a force of 25 inch-lb/2.8nm. This setup ensures a firm grip on the optical sight and permanent zero retention. The mount is anodized in a matte black coating with radiused edges and corners to prevent snagging and scratching of other used gear. Slimmed construction helps to reduce weight without limiting performance and zero-holding ability.
Additional information Rail system: Picatinny Rail Packaging Dimensions & Weight Length: 14.5 cm Length packed: 18.5 cm Width: 5 cm Width packed: 8 cm Height: 4.5 cm Height packed: 5.5 cm Weight: 0.156 kg Weight packed: 0.218 kg
