Proudly Designed and Made in USA

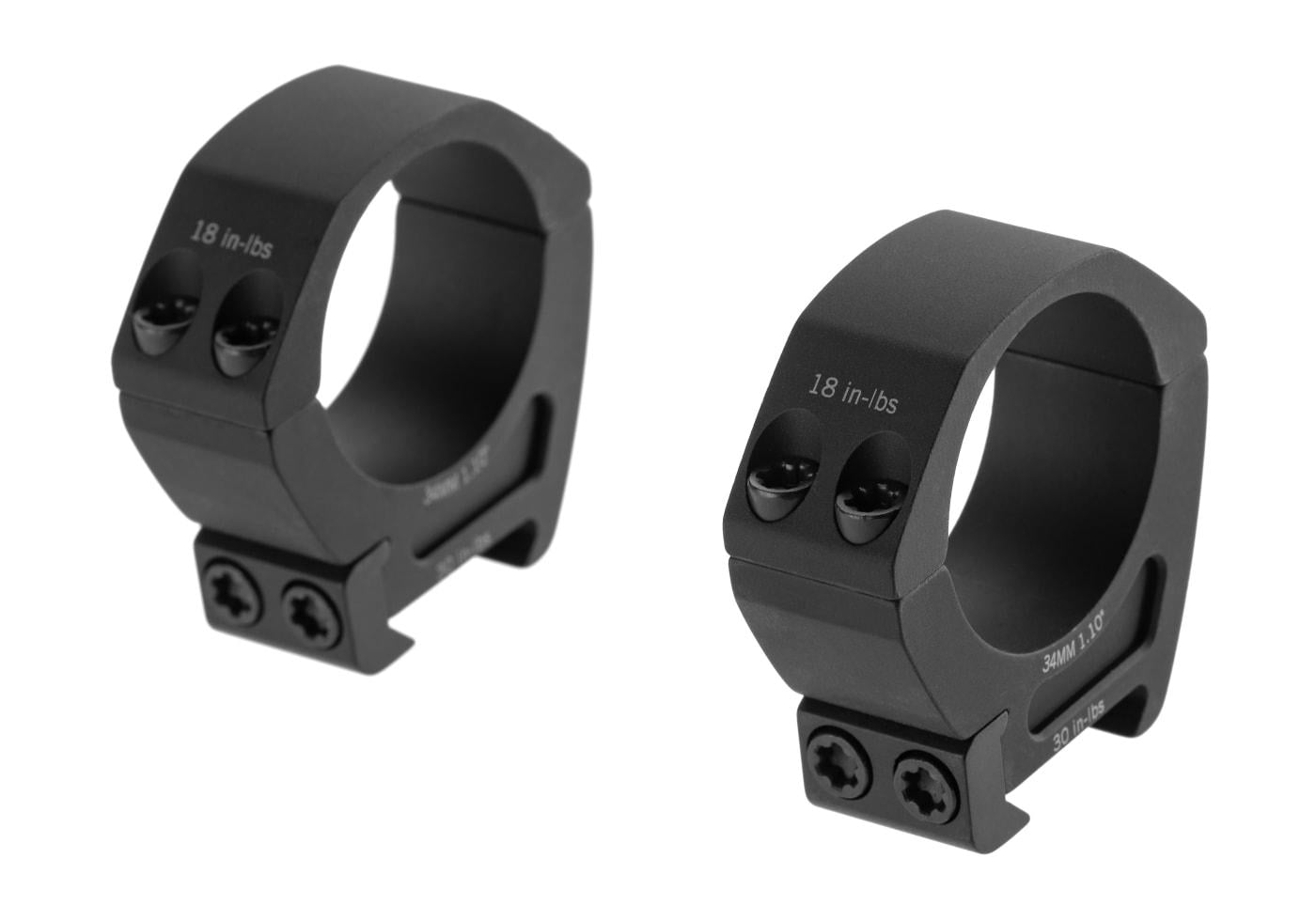

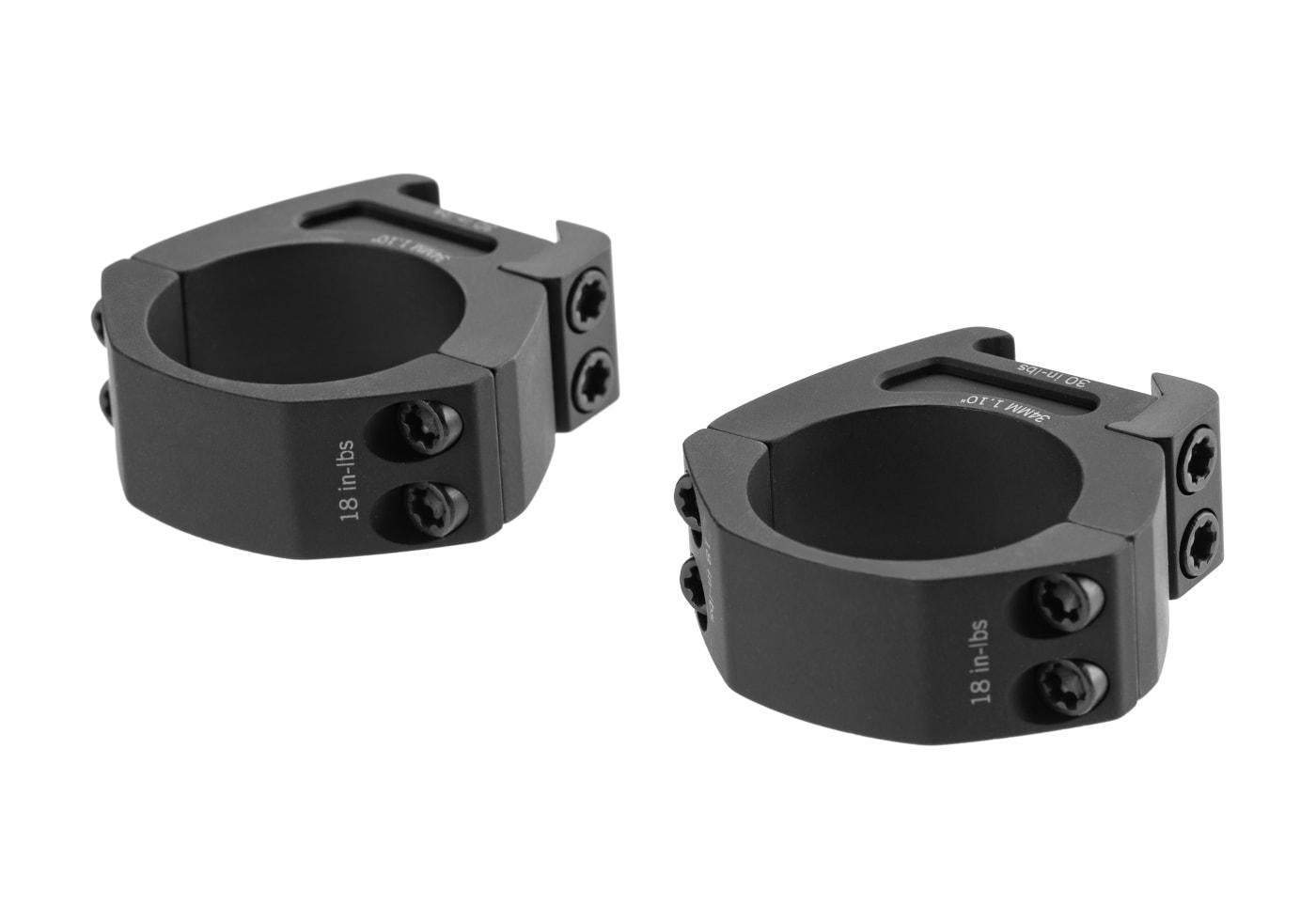

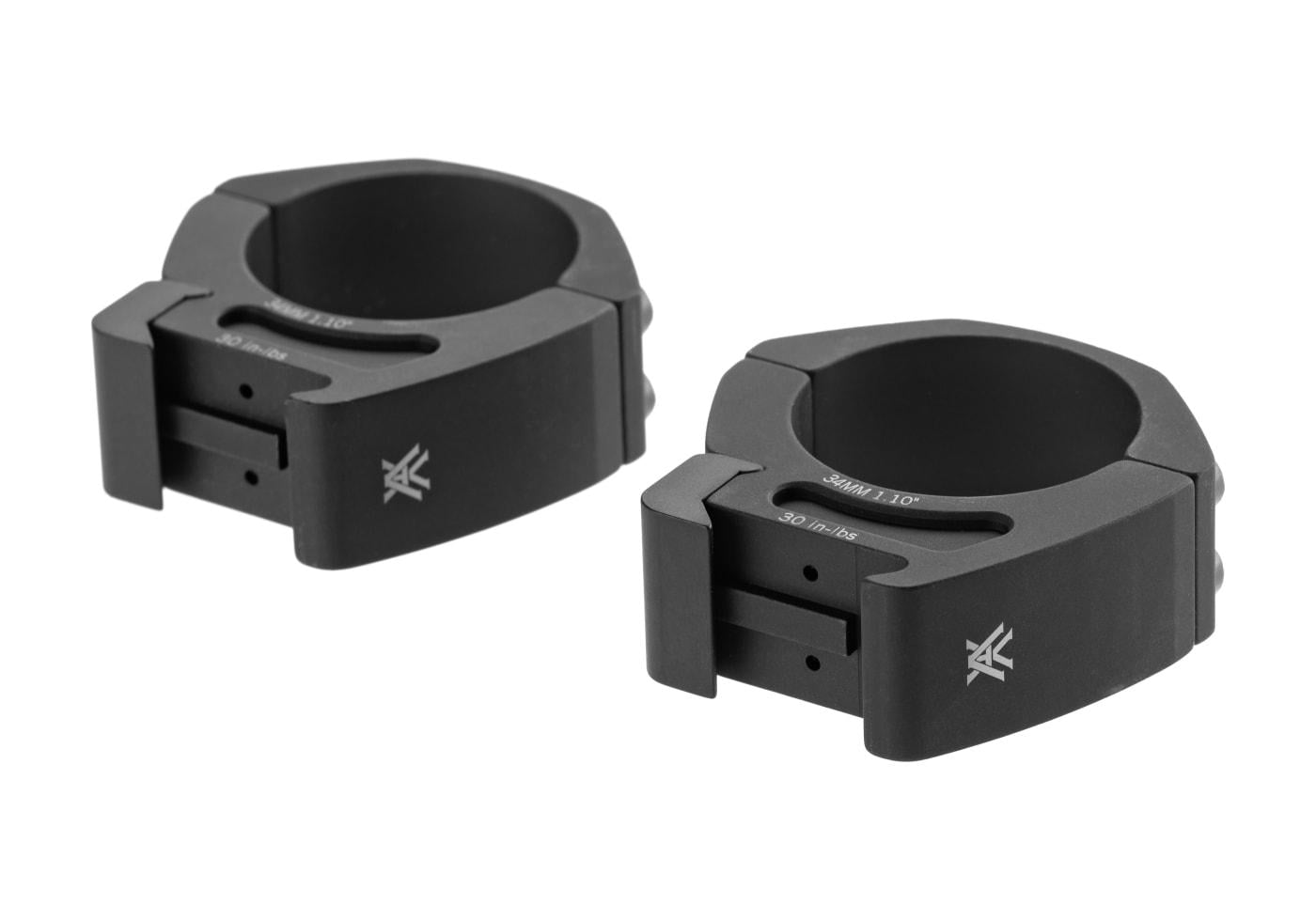

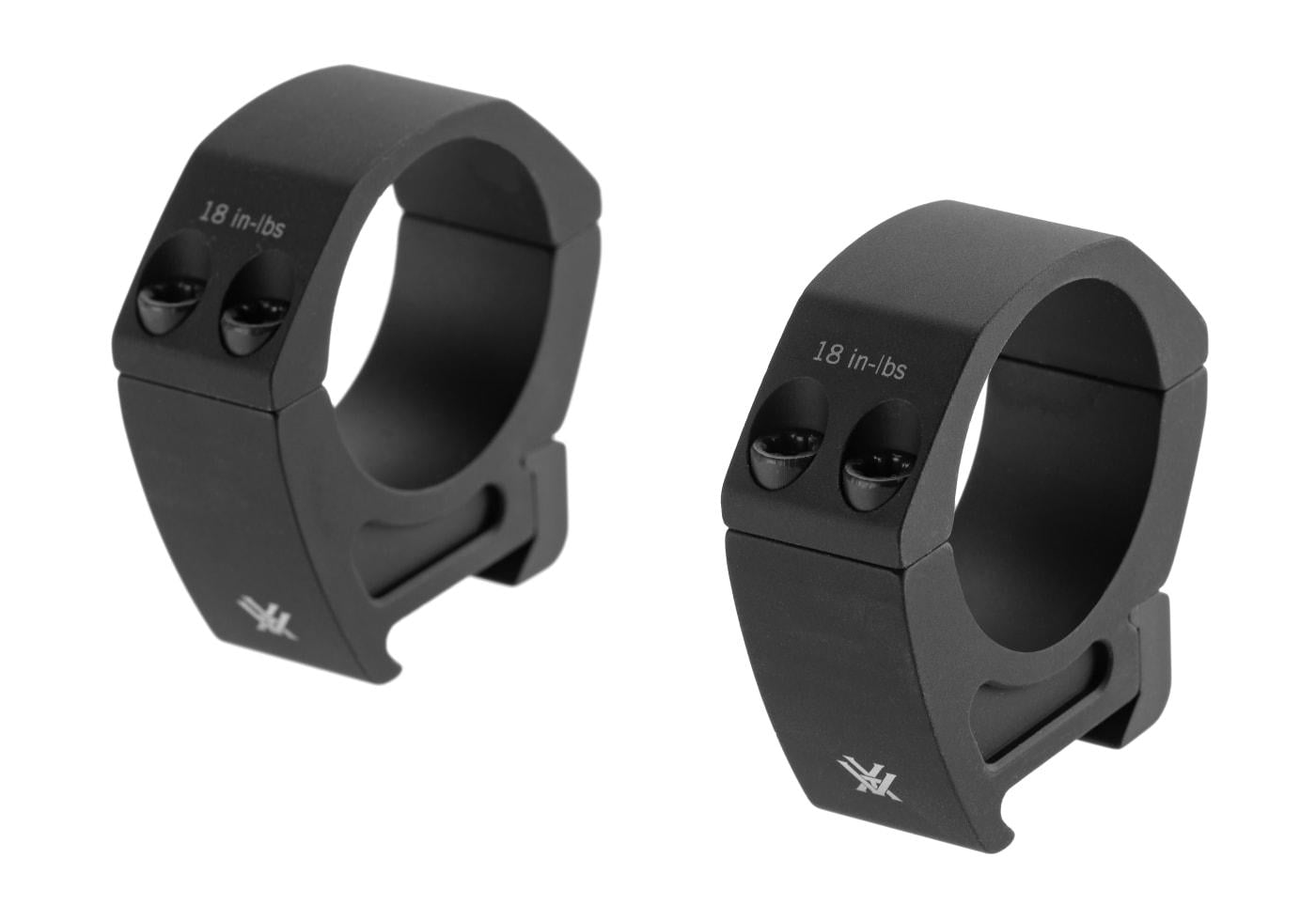

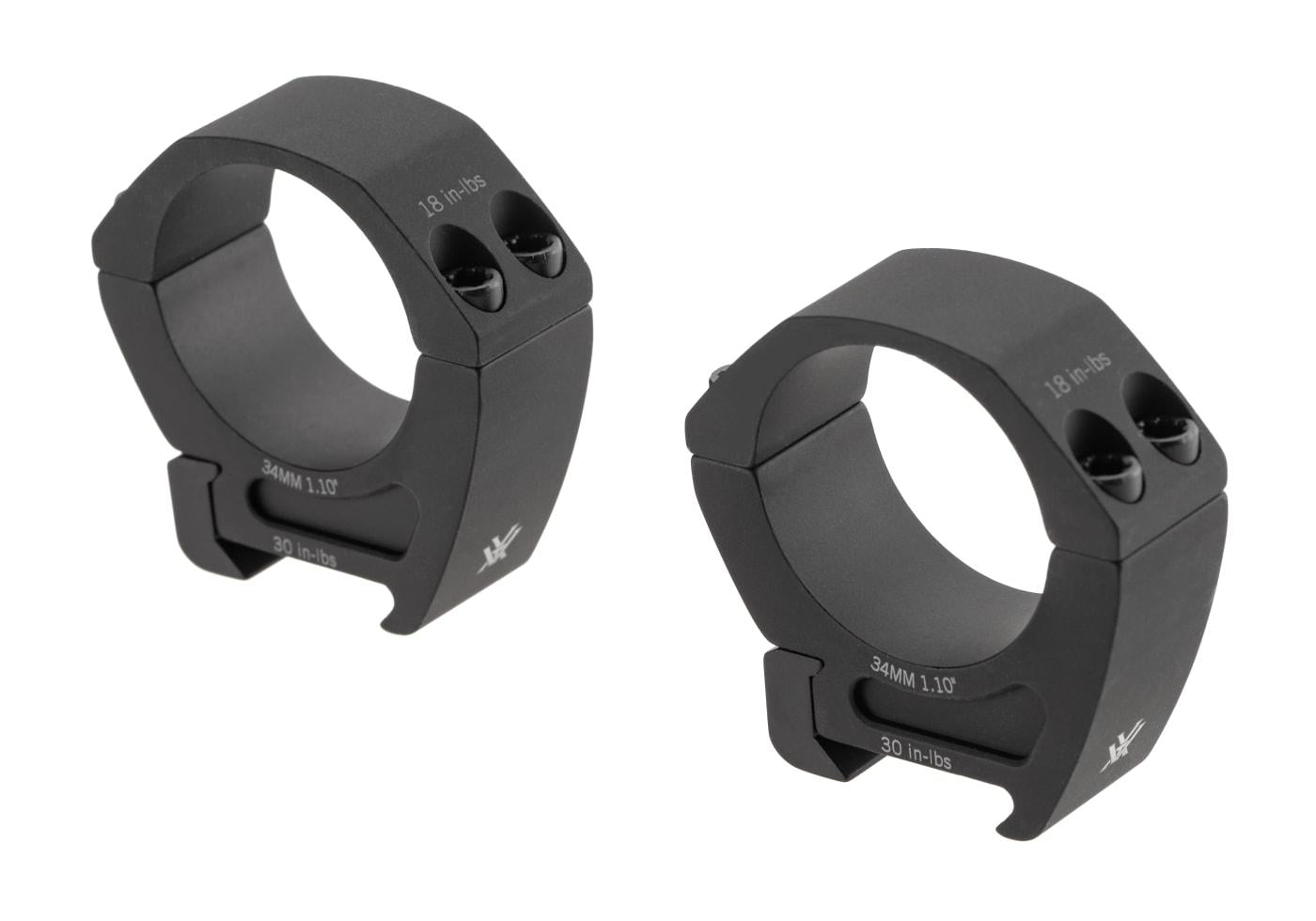

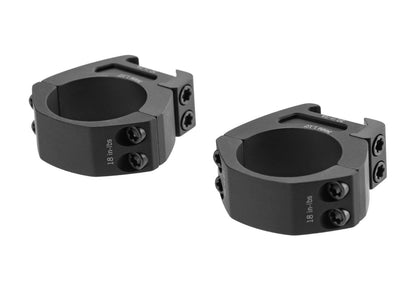

Medium Profile P.O.I Rings Have a 1.26 in or
32 mm Center Height to Fit Optics with a 34 mm Tube, for up to a 63 mm Outer
Objective
Patented P.O.I Locking Plate and Precision
Optics Interface Design Features:
a) Flush-Fitting Low Profile Steel Locking
Side Plate Controlled by Dual Spring-Loaded Guide Rods for Easy Installation
b) Square-Shaped Integral Recoil Stop for
Complete Surface Contact with Picatinny Slot and Secure and Repeatable Zero
Hold
c) Top and Bottom Rings Precision-Machined
from 1 Piece of Al for Tight Tolerance Inner Diameter and Seamless
Ring-to-Scope Interaction

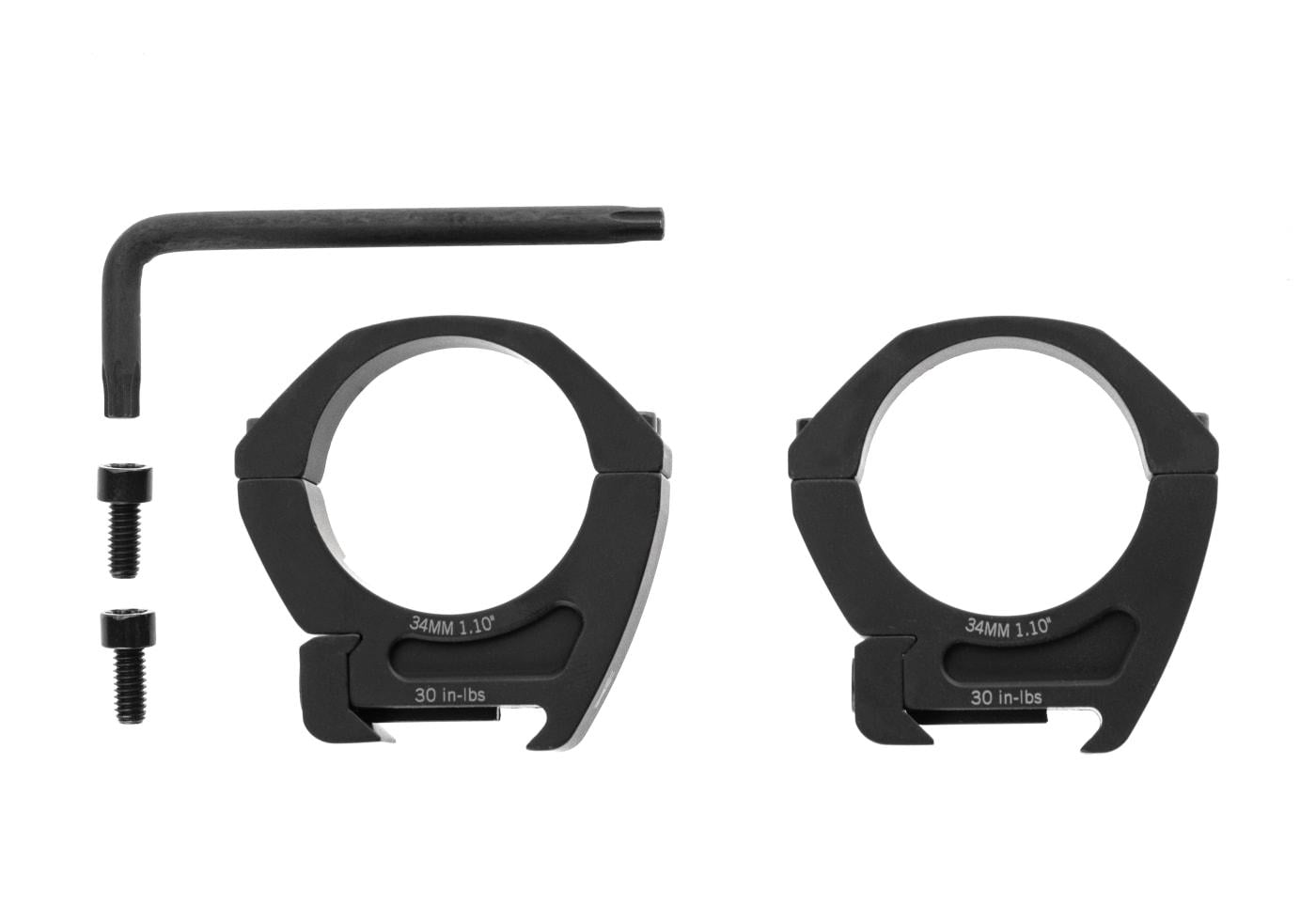

2 Piece Ring Set with 22 mm Ring Width,
Torx-Locking and Equipped with 4 Top Torx Screws
Designed to Fit on Mil-spec 1913 Picatinny
Rail Platforms
Machined from 6061-T6 Aluminum with Steel
Construction and Matte Black Hardcoat Anodize
Rated for .50 BMG
NOTE: We recommend to tighten the ring top
screws with a torque value of 25 inch-lb and the side plate screw with torque
value of 45 inch-lb.
Caliber Rating .50 BMG
Color(s) Black
Height Profile Medium
Locking Mechanism Torx Screw
Made in USA Yes
Materials 6061-T6
Aluminum, Steel
Mount Type Picatinny
No. of Pieces 2
Quick-detachable No
Surface Finish Anodized
Weight 5.3
oz / 150 g
Center Height 1.26
in / 32 mm
Inner Diameter 34 mm
Max Fit Obj. Bell Dia 2.48 in / 63 mm
Ring Width 0.87
in / 22 mm
Saddle Height 0.59
in
Saddle Height 0.59
in / 15 mm
